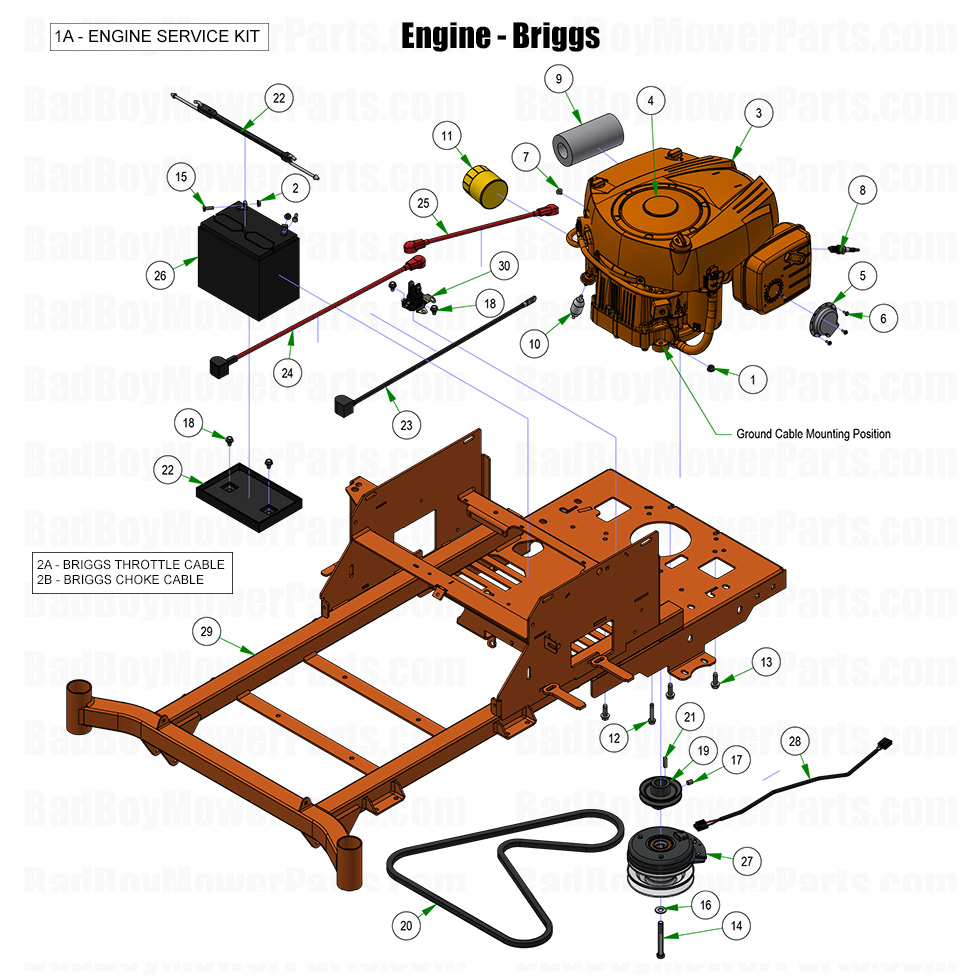

2026 > MZ Rambler > Engine - Briggs
013-0101-00 - Bad Boy Mower Parts
013-0101-00

013-0101-00 - 5/16-18 Gr5 Distorted Thread Flange Locknut

$2.99 Usually ship in 1-3 days
1
063-2000-08 – MZ Briggs Intek 21HP Engine Service Kit
-15%
063-2000-08

In stock

063-2000-08 - MZ Briggs Intek 21HP Engine Service Kit

Original price was: $133.22.Current price is: $112.99.
-15%
Usually ship in 1-3 days

In stock

1A
013-9001-00 - Bad Boy Mower Parts
013-9001-00

In stock

013-9001-00 - 1/4-20 Hex Flange Nuts Zinc w/Serrations

$2.99 Usually ship in 1-3 days

In stock

2
055-8020-00 - Bad Boy Mower Parts
055-8020-00

In stock

055-8020-00 - Throttle Cable-53"

$38.97 Usually ship in 1-3 days

In stock

2A
054-8016-00 - Bad Boy Mower Parts
054-8016-00

In stock

054-8016-00 - 47" Choke Cable

$28.88 Usually ship in 1-3 days

In stock

2B
015-1923-00 - 19 HP Briggs Engine
015-1923-00

In stock

015-1923-00 - 19 HP Briggs Engine

$2,099.99 Usually ship in 1-3 days

In stock

3

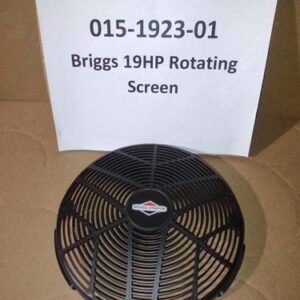

015-1923-01 - Briggs 19HP Rotating Screen
015-1923-01

In stock

015-1923-01 - Briggs 19HP Rotating Screen

$12.83 Usually ship in 1-3 days

In stock

4

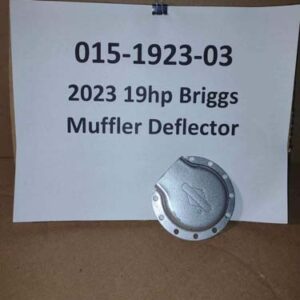

015-1923-03 - Muffler Deflector
015-1923-03

In stock

015-1923-03 - Muffler Deflector

$3.51 Usually ship in 1-3 days

In stock

5

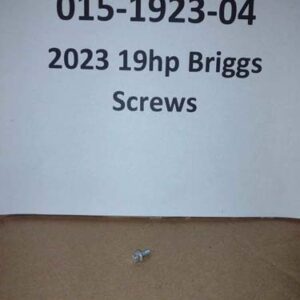

015-1923-04 - Muffler Deflector Screws
015-1923-04

In stock

015-1923-04 - Muffler Deflector Screws

$2.99 Usually ship in 1-3 days

In stock

6
015-1923-05 - 19HP Briggs Choke Cable Screw/Washer
015-1923-05

In stock

015-1923-05 - 19HP Briggs Choke Cable Screw/Washer

Usually ship in 1-3 days

In stock

7
015-8000-00 - Bad Boy Mower Parts
015-8000-00

In stock

015-8000-00 - Spark Plug (RC12YC or Equivalent)

$13.90 Usually ship in 1-3 days

In stock

8
063-4026-00 - Bad Boy Mower Parts
063-4026-00

In stock

063-4026-00 - 21hp Briggs Air Filer and Pre-cleaner - MZ

$39.04 Usually ship in 1-3 days

In stock

9
063-6000-00 - Bad Boy Mower Parts
063-6000-00

In stock

063-6000-00 - Universal Inline Fuel Filter

$14.19 Usually ship in 1-3 days

In stock

10
063-8018-00 - Bad Boy Mower Parts
063-8018-00

In stock

063-8018-00 - Oil Filter

$26.53 Usually ship in 1-3 days

In stock

11
018-0114-00 - Bad Boy Mower Parts
018-0114-00

018-0114-00 - 5/16 x 1-3/4 Gr5 Hex Flange Bolt

$2.99 Usually ship in 1-3 days
12
018-1075-00 - Bad Boy Mower Parts
018-1075-00

In stock

018-1075-00 - 3/8 - 1 1/8 Engine Mounting Bolt

$2.99 Usually ship in 1-3 days

In stock

13
018-5052-21
018-5052-21

In stock

018-5052-21 - 7/16-20x3.5 Hex Bolt GR - W/ Patch

$3.62 Usually ship in 1-3 days

In stock

14
018-8052-00 - Bad Boy Mower Parts
018-8052-00

In stock

018-8052-00 - 1/4-20 - 3/4 GR 5 - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

15
019-5029-00 - Bad Boy Mower Parts
019-5029-00

In stock

019-5029-00 - 3/8 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

16
030-6029-00 - Bad Boy Mower Parts
030-6029-00

In stock

030-6029-00 - 3/8-16x1/2 Set Screw

$2.99 Usually ship in 1-3 days

In stock

17
030-7044-00 - Bad Boy Mower Parts
030-7044-00

In stock

030-7044-00 - 5/16-18 - HWH unslot (F) tcs zinc

$2.99 Usually ship in 1-3 days

In stock

18
033-2010-00 - Bad Boy Mower Parts
033-2010-00

In stock

033-2010-00 - 3 3/4 Motor Pulley

$31.22 Usually ship in 1-3 days

In stock

19
041-6400-00 - Bad Boy Mower belts
041-6400-00

In stock

041-6400-00 - Pump Belt

$58.84 Usually ship in 1-3 days

In stock

20
042-6030-00 - Bad Boy Mower Parts
042-6030-00

In stock

042-6030-00 - 1/4" - 1" Square Key

$4.81 Usually ship in 1-3 days

In stock

21
043-8930-98 - Bad Boy Mower Parts
043-8930-98

In stock

043-8930-98 - Battery Hold Down Assembly Strap

$26.74 Usually ship in 1-3 days

In stock

22
064-0030-00 - Bad Boy Mower Parts
064-0030-00

In stock

064-0030-00 - 24 inch Black Battery Cable

$18.72 Usually ship in 1-3 days

In stock

23
064-5300-00 – 24″ Red Battery Cable
064-5300-00

In stock

064-5300-00 - 24" Red Battery Cable

$21.85 Usually ship in 1-3 days

In stock

24
064-5301-00 - Bad Boy Mower Parts
064-5301-00

In stock

064-5301-00 - 12" Red Battery Cable

$17.16 Usually ship in 1-3 days

In stock

25
070-0057-00 - Bad Boy Mower Parts
070-0057-00

In stock

070-0057-00 - 105 Ft Lb. Clutch- - Shaft

$139.99 Usually ship in 1-3 days

In stock

27
070-2000-00 - bad boy mower clutch pigtail
070-2000-00

In stock

070-2000-00 - Clutch Pigtail

$21.24 Usually ship in 1-3 days

In stock

28
070-2500-00 - Bad Boy Mower Parts
070-2500-00

In stock

070-2500-00 - 2025 MZ 42-48 Frame--Orange

$899.99 Usually ship in 1-3 days

In stock

29
108-0001-00 - Bad Boy Mower Parts
108-0001-00

In stock

108-0001-00 - Solenoid

$29.41 Usually ship in 1-3 days

In stock

30
