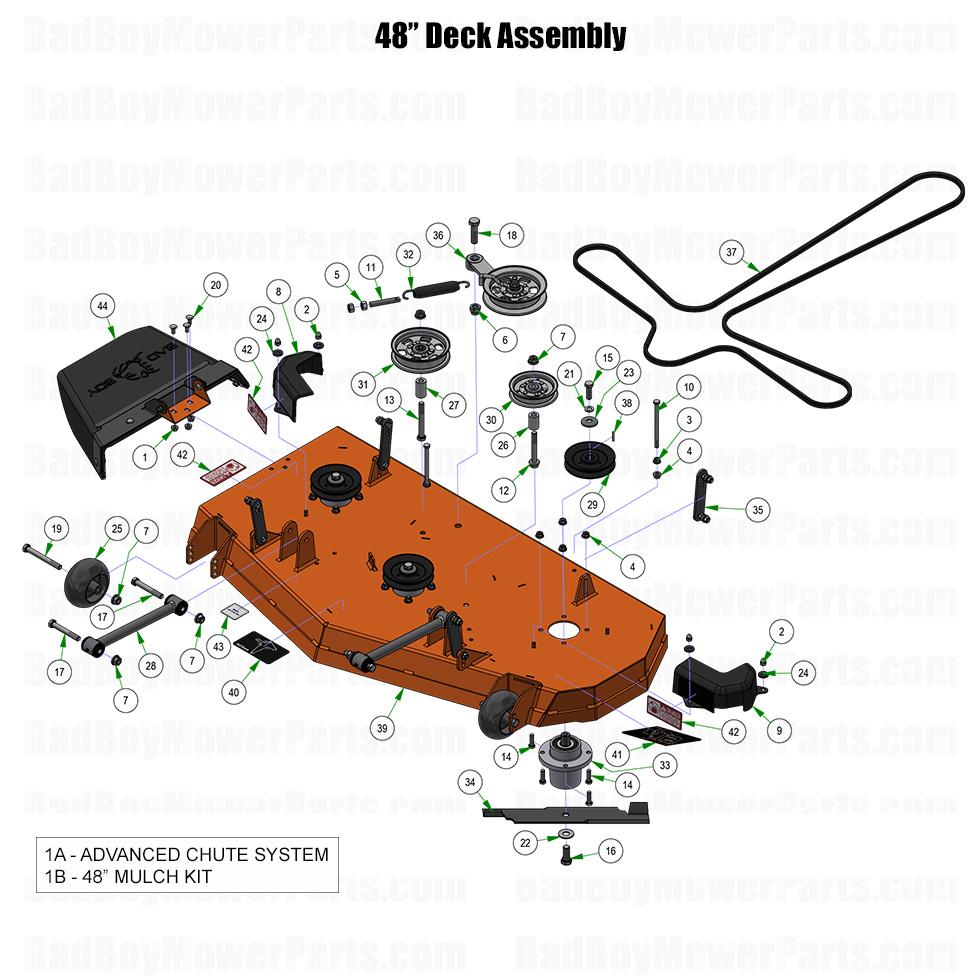

2026 > MZ Magnum > 48\" Deck Assembly
013-8049-00 - 5/16-18 Nylon Flange Nut
013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days
1
088-4842-00 - Bad Boy Mower Parts
088-4842-00

In stock

088-4842-00 - Advanced Chute System for all MZ, MZ Magnum - ZT Avenger decks

$249.00 Usually ship in 1-3 days

In stock

1A
210-0148-50 - Bad Boy Mower Parts
210-0148-50

In stock

210-0148-50 - Mulch Kit w/ Blades

$318.45 Usually ship in 1-3 days

In stock

1B
013-0004-00 - Bad Boy Mower Parts
013-0004-00

In stock

013-0004-00 - Acorn Nut-Pulley Cover

$3.29 Usually ship in 1-3 days

In stock

2
013-5201-00 - Bad Boy Mower Parts
013-5201-00

In stock

013-5201-00 - 3/8-16 Hex Flange Nuts Zinc w/ Serrations

$2.99 Usually ship in 1-3 days

In stock

3
013-5202-00 - Bad Boy Mower Parts
013-5202-00

In stock

013-5202-00 - 3/8 Nylock Flange Nut

$2.99 Usually ship in 1-3 days

In stock

4
013-7018-00 - Bad Boy Mower Parts
013-7018-00

In stock

013-7018-00 - 1/2-13 Hex Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

5
013-7021-00 - Bad Boy Mower Parts
013-7021-00

In stock

013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

6
013-8050-00 - Bad Boy Mower Parts
013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

7
014-4025-00 - Bad Boy Mower Parts
014-4025-00

In stock

014-4025-00 - Extra Small Pulley Cover - Right

$17.86 Usually ship in 1-3 days

In stock

8
014-4026-00 - Bad Boy Mower Parts
014-4026-00

In stock

014-4026-00 - Extra Small Pulley Cover - Left

$17.86 Usually ship in 1-3 days

In stock

9
018-0065-00 - Bad Boy Mower Parts
018-0065-00

In stock

018-0065-00 - 3/8"-16 - 5 1/4" Grade - Hex Bolt

$4.39 Usually ship in 1-3 days

In stock

10
018-2004-50 - Bad Boy Mower Parts
018-2004-50

In stock

018-2004-50 - All Thread

$12.94 Usually ship in 1-3 days

In stock

11
018-2018-00 - Bad Boy Mower Parts
018-2018-00

In stock

018-2018-00 - 1/2 - 3 1/2 Flange Bolt - Gr 8

$3.62 Usually ship in 1-3 days

In stock

12
018-5019-00 - Bad Boy Mower Parts
018-5019-00

In stock

018-5019-00 - 1/2-13 - 4 GR - Hex Bolt

$4.39 Usually ship in 1-3 days

In stock

13
018-5040-00 - Bad Boy Mower Parts
018-5040-00

In stock

018-5040-00 - 3/8-16 - 1-1/4 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

14
018-6019-00 - Bad Boy Mower Parts
018-6019-00

In stock

018-6019-00 - 1/2-20 - 1-1/2 GR - Bolt Zinc, Fine Thread Bolt

$2.99 Usually ship in 1-3 days

In stock

15
018-6020-00 - Bad Boy Mower Parts
018-6020-00

In stock

018-6020-00 - 5/8-18 - 1-1/2 GR - Hex Bolt

$2.99 Usually ship in 1-3 days

In stock

16
018-6054-00 - Bad Boy Mower Parts
018-6054-00

In stock

018-6054-00 - 1/2-13 - 3-1/2 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

17
018-6058-00 - Bad Boy Mower Parts
018-6058-00

In stock

018-6058-00 - 5/8-11 - 2-1/4 GR - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

18
018-7050-00 - Bad Boy Mower Parts
018-7050-00

In stock

018-7050-00 - 1/2-13 - 4-1/2 GR 5 - Hex Bolts

$2.99 Usually ship in 1-3 days

In stock

19
018-8062-00 - Bad Boy Mower Parts
018-8062-00

In stock

018-8062-00 - 5/16-18 - 3/4 Carriage Bolts

$2.99 Usually ship in 1-3 days

In stock

20
019-5007-00 - Bad Boy Mower Parts
019-5007-00

In stock

019-5007-00 - 1/2 Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

21
019-5038-00 - Bad Boy Mower Parts
019-5038-00

In stock

019-5038-00 - 5/8 Flat Washer

$2.99 Usually ship in 1-3 days

In stock

22
019-6020-00 - Bad Boy Mower Parts
019-6020-00

In stock

019-6020-00 - 1/2 Belleville Washer #K2000-G -150

$5.16 Usually ship in 1-3 days

In stock

23
019-6050-00 - Bad Boy Mower Parts
019-6050-00

In stock

019-6050-00 -.360 ID Black Plastic Washer

$2.99 Usually ship in 1-3 days

In stock

24
022-1001-00 - Bad Boy Mower Parts
022-1001-00

In stock

022-1001-00 - Deck Wheel

$17.11 Usually ship in 1-3 days

In stock

25
025-5338-00 - Bad Boy Mower Parts
025-5338-00

In stock

025-5338-00 -.502 ID X.750 OD - 1.500" Spacer Zinc

$3.62 Usually ship in 1-3 days

In stock

26
025-5339-00 - Bad Boy Mower Parts
025-5339-00

In stock

025-5339-00 - .502 ID - 1.00 OD - 1.750 Length Spacer Zinc

$5.36 Usually ship in 1-3 days

In stock

27
028-0004-22 - Bad Boy Mower Parts
028-0004-22

In stock

028-0004-22 - Hybrid Turnbuckle/Deck Locator

$46.84 Usually ship in 1-3 days

In stock

28
033-4820-00 - Bad Boy Mower Parts
033-4820-00

In stock

033-4820-00 - Deck Spindle Pulley - 42"/48" MZ/MZ Magnum, 34"/36" Revolt/Revolt SD

$31.22 Usually ship in 1-3 days

In stock

29
033-6001-00 - Bad Boy Mower Parts
033-6001-00

In stock

033-6001-00 - 4 3/4 Idler Pulley

$31.22 Usually ship in 1-3 days

In stock

30
033-7201-25 - Bad Boy Mower Idler Pulley
033-7201-25

In stock

033-7201-25 - 5 3/4 Idler Pulley-Capitol Stampings

$35.48 Usually ship in 1-3 days

In stock

31
034-2020-00 - Bad Boy Mower deck springs
034-2020-00

In stock

034-2020-00 - Idler Spring

$17.11 Usually ship in 1-3 days

In stock

32
037-2000-00 - Bad Boy Mower Parts
037-2000-00

In stock

037-2000-00 - Spindle Assembly fits All ZT Avengers and MZ/MZ Magnum Also Fits 2016-2017 36" Stand-On

$204.33 * Usually ship in 1-3 days

In stock

33
038-4826-00 - Bad Boy Mower Parts
038-4826-00

In stock

038-4826-00 - 48" High Lift Fusion Blade-MZ

$22.99 * Usually ship in 1-3 days

In stock

34
038-0075-00 - Bad Boy Mower Parts
038-0075-00

In stock

038-0075-00 - 48" Fusion Blade-MZ - 6-Pack (038-4826-00)

$118.99 Usually ship in 1-3 days

In stock

34.1
038-4827-00 - Bad Boy Mower Parts
038-4827-00

In stock

038-4827-00 - 48" Gator Blade for MZ only

$21.99 Usually ship in 1-3 days

In stock

34.2
038-4827-06 - Bad Boy Mower Parts
038-4827-06

In stock

038-4827-06 - 48" Gator Fusion Blades, 6-Pack (MZ Only)

$131.99 Usually ship in 1-3 days

In stock

34.3
039-2127-17 - Bad Boy Mower Parts
039-2127-17

In stock

039-2127-17 - Deck Hanger Assy.

$15.60 Usually ship in 1-3 days

In stock

35
039-6945-26 - Bad Boy Mower Parts
039-6945-26

039-6945-26 - Deck Idler Assembly

$106.99 Usually ship in 1-3 days
36
041-1470-00 - Bad Boy Mower Parts
041-1470-00

In stock

041-1470-00 - B147 Deck Belt

$87.39 Usually ship in 1-3 days

In stock

37
042-0010-00 - Bad Boy Mower Parts
042-0010-00

In stock

042-0010-00 - 3/16 - 1 Square Machine Key

$4.81 Usually ship in 1-3 days

In stock

38
086-9025-00- Bad Boy Mower Parts
060-2500-00

060-2500-00 - 2025 48"x4" Deck--Orange

$799.99 Usually ship in 1-3 days
39
091-0393-00 - Bad Boy Mower Parts
091-0393-00

In stock

091-0393-00 - 48"/ 42" Deck Route Decal

$11.76 Usually ship in 1-3 days

In stock

40
091-0532-00 - Bad Boy Mower Parts
091-0532-00

In stock

091-0532-00 - 48" Grip Deck Decal

$10.99 Usually ship in 1-3 days

In stock

41
091-3012-00 - Bad Boy Mower Parts
091-3012-00

In stock

091-3012-00 - Danger Decal-Spindle/Discharge

$2.99 Usually ship in 1-3 days

In stock

42
091-8001-00 - Bad Boy Mower Parts
091-8001-00

In stock

091-8001-00 - Impact Absorption Patent Decal

$2.99 Usually ship in 1-3 days

In stock

43
210-6015-98 - Discharge Chute Assembly
210-6015-98

In stock

210-6015-98 - Discharge Chute Assembly

$145.95 Usually ship in 1-3 days

In stock

44
