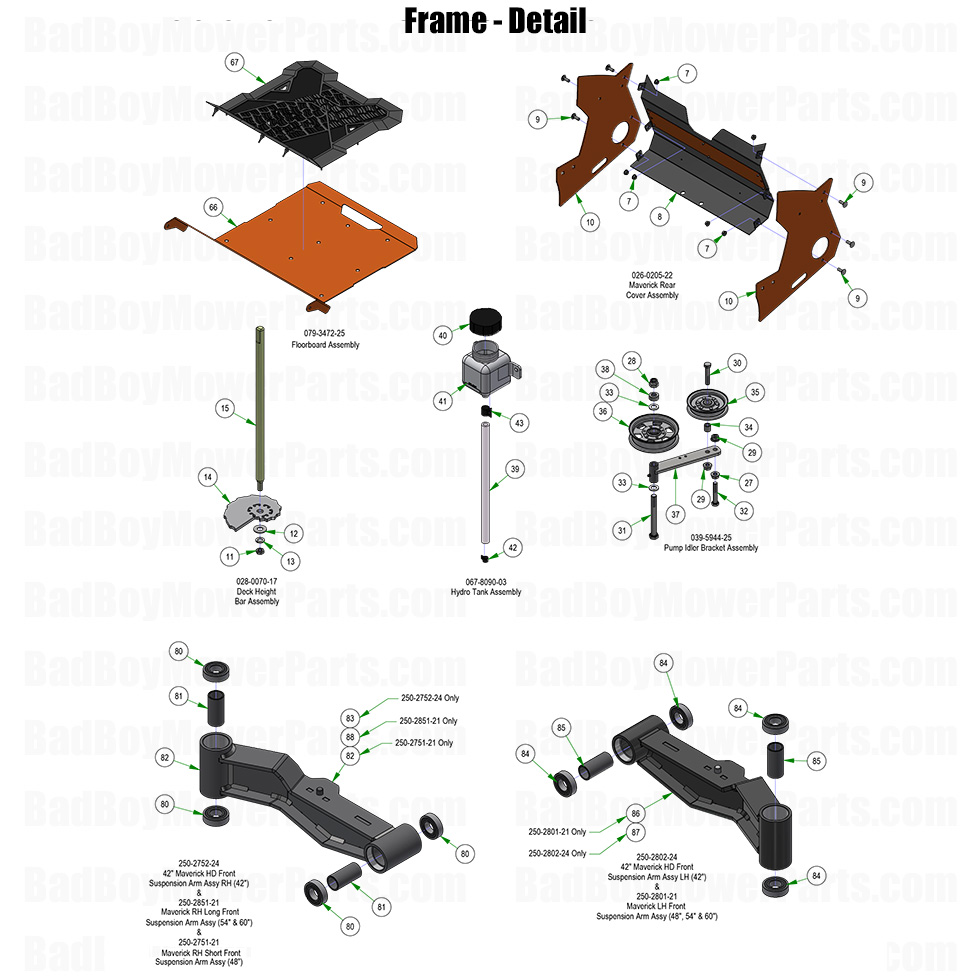

2026 > Maverick HD > Frame - Detail
013-8049-00 - 5/16-18 Nylon Flange Nut
013-8049-00

013-8049-00 – 5/16-18 Nylon Flange Nut

$2.99 Usually ship in 1-3 days
7
026-0205-22 - Bad Boy Mower Parts
026-0205-22

In stock

026-0205-22 - 2022 Maverick Rear Cover Assembly

$189.99 Usually ship in 1-3 days

In stock

7.1
014-5300-00 - Bad Boy Mower Parts
014-5300-00

In stock

014-5300-00 - 2021-2022 Maverick Rear Cover Assembly

$222.99 Usually ship in 1-3 days

In stock

8
018-5044-00 - Bad Boy Mower Parts
018-5044-00

In stock

018-5044-00 - 3/8 - 1 Carriage Bolt

$2.99 Usually ship in 1-3 days

In stock

9
026-0226-00 - Bad Boy Mower Parts
026-0226-00

In stock

026-0226-00 Rear Cover Side Plate - Painted

$42.79 Usually ship in 1-3 days

In stock

10
013-6051-00 - Bad Boy Mower Parts
013-6051-00

In stock

013-6051-00 - 3/8-24 Hex Jam Nuts Zinc

$2.99 Usually ship in 1-3 days

In stock

11
028-0070-17 - Bad Boy Mower Parts
028-0070-17

In stock

028-0070-17 - Deck Height Bar Assy.

$29.66 Usually ship in 1-3 days

In stock

11.1
019-5029-00 - Bad Boy Mower Parts
019-5029-00

In stock

019-5029-00 - 3/8 USS Flat Washer Zinc

$2.99 Usually ship in 1-3 days

In stock

12
019-5037-00 - Bad Boy Mower Parts
019-5037-00

In stock

019-5037-00 - 3/8" Lockwasher Zinc

$2.99 Usually ship in 1-3 days

In stock

13
026-1100-00 - Bad Boy Mower Parts
026-1100-00

In stock

026-1100-00 - 2017-Newer CAM Plate Use With Deck Adjuster

$15.55 Usually ship in 1-3 days

In stock

14
028-0014-00 - Bad Boy Mower Parts
028-0014-00

In stock

028-0014-00 - Deck Height Dial Rod

$31.17 Usually ship in 1-3 days

In stock

15
013-7021-00 - Bad Boy Mower Parts
013-7021-00

In stock

013-7021-00 - 5/8-11 Nylon Insert Locknut Zinc

$2.99 Usually ship in 1-3 days

In stock

28
013-8050-00 - Bad Boy Mower Parts
013-8050-00

In stock

013-8050-00 - 1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$2.99 Usually ship in 1-3 days

In stock

29
018-0015-00 - Bad Boy Mower Parts
018-0015-00

In stock

018-0015-00 - 1/2-13 - 2 1/2 Hex Bolt Grade 5

$2.99 Usually ship in 1-3 days

In stock

30
018-6016-00 - Bad Boy Mower Parts
018-6016-00

In stock

018-6016-00 - 5/8 - 5 1/2 Bolt

$2.99 Usually ship in 1-3 days

In stock

31
018-6036-00 - Bad Boy Mower Parts
018-6036-00

In stock

018-6036-00 - 1/2-13 - 2-3/4 GR - Bolt Zinc

$2.99 Usually ship in 1-3 days

In stock

32
019-6017-00 - Bad Boy Mower Parts
019-6017-00

In stock

019-6017-00 -.630 ID - 1.122 OD X.142 THK Flat Washer Nylon

$2.99 Usually ship in 1-3 days

In stock

33
025-5203-00 - Bad Boy Mower Parts
025-5203-00

In stock

025-5203-00 - Spacer 3/4" OD - 1/2" ID - 0.75"

$3.29 Usually ship in 1-3 days

In stock

34
033-6001-00 - Bad Boy Mower Parts
033-6001-00

In stock

033-6001-00 - 4 3/4 Idler Pulley

$31.22 Usually ship in 1-3 days

In stock

35
033-8000-00 - Bad Boy Mower Parts
033-8000-00

In stock

033-8000-00 - 5 3/4 Pump Idler Pulley-5/8 Bore 2016-2024 Maverick

$35.48 Usually ship in 1-3 days

In stock

36
039-6945-00 - Bad Boy Mower Parts
039-6945-00

In stock

039-6945-00 - Idler Arm Bracket

$40.53 Usually ship in 1-3 days

In stock

37
025-7020-00 - Bad Boy Mower Parts
025-7020-00

In stock

025-7020-00 - 5/8 Set Collar w/One Set Screw

$4.37 Usually ship in 1-3 days

In stock

38
051-0016-00 - Bad Boy Mower Parts
051-0016-00

In stock

051-0016-00 -ZT/ Maverick Hydro Tank Hose

$9.61 Usually ship in 1-3 days

In stock

39
067-8090-03 - Bad Boy Mower Parts
067-8090-03

In stock

067-8090-03 - Hydro Tank Assembly

$42.46 Usually ship in 1-3 days

In stock

39.1
066-5050-00 - Bad Boy Mower Parts
066-5050-00

In stock

066-5050-00 - Hydraulic Tank Cap

$15.60 Usually ship in 1-3 days

In stock

40
067-8090-00 - Bad Boy Mower Parts
067-8090-00

In stock

067-8090-00 - Hydraulic Expansion Tank

$31.22 Usually ship in 1-3 days

In stock

41
072-8065-00 - Bad Boy Mower Parts
072-8065-00

In stock

072-8065-00 - 3/8" Hose Clamp - CTB-16-STFS

$2.99 Usually ship in 1-3 days

In stock

42
072-8066-00 - Bad Boy Mower Parts
072-8066-00

In stock

072-8066-00 - 1/2" Hose Clamp

$2.99 Usually ship in 1-3 days

In stock

43
091-4044-00 - Bad Boy Mower Parts
079-3472-25

079-3472-25 - Floorboard Assembly

$149.99 Usually ship in 1-3 days
66
010-1050-00 - Bad Boy Mower Parts
010-1050-00

In stock

010-1050-00 - Front Fork Caster Bearing

$18.39 Usually ship in 1-3 days

In stock

80
025-0003-00 - Bad Boy Mower Parts
025-0003-00

In stock

025-0003-00 - Front Bearing Spacer

$14.04 Usually ship in 1-3 days

In stock

81
250-2851-21 - Bad Boy Mower Parts
250-2851-21

In stock

250-2851-21 - 2021 and Newer Maverick RH Long Front Suspension Arm Assy

$149.99 Usually ship in 1-3 days

In stock

82
010-1050-00 - Bad Boy Mower Parts
010-1050-00

In stock

010-1050-00 - Front Fork Caster Bearing

$18.39 Usually ship in 1-3 days

In stock

84
025-0003-00 - Bad Boy Mower Parts
025-0003-00

In stock

025-0003-00 - Front Bearing Spacer

$14.04 Usually ship in 1-3 days

In stock

85
250-2801-21 - Bad Boy Mower Parts
250-2801-21

In stock

250-2801-21 - 2021 and Newer Maverick LH Front Suspension Arm Assy

$132.68 Usually ship in 1-3 days

In stock

86
250-2751-21 - Bad Boy Mower Parts
250-2751-21

In stock

250-2751-21 - 2021 Maverick RH Arm Assembly - Short

$199.99 Usually ship in 1-3 days

In stock

88
